The 5 Motions of
Arrow Flight
1: Parabolic Motion
Parabolic motion is the natural arc an arrow follows from the moment it leaves the bow. As soon as the arrow is released, gravity begins pulling it downward while forward momentum carries it toward the target, creating a curved flight path. Even with modern bows and high arrow speeds, no arrow travels in a perfectly straight line. The arc is always present and becomes more noticeable as distance increases.
A standard arrow setup typically moves through this arc in a slightly nose-down orientation as it travels downrange. In other words, the front of the arrow gradually drops through the flight path instead of maintaining a level posture relative to the ground (or relative to the shot angle when shooting from an elevated position). As instability, excess flex, and inefficient energy transfer compound during flight, this nose-down tendency can make the arc less predictable and reduce forgiveness and repeatability at longer distances.
A structurally optimized AeroConcept (AC) build is designed to stabilize more quickly and promote a more horizontal flight attitude relative to the ground (or the shot angle when elevated). By managing energy flow and reducing unnecessary flex and oscillation early in flight, the arrow maintains a flatter, more controlled arc, which improves consistency, forgiveness, and repeatability downrange.

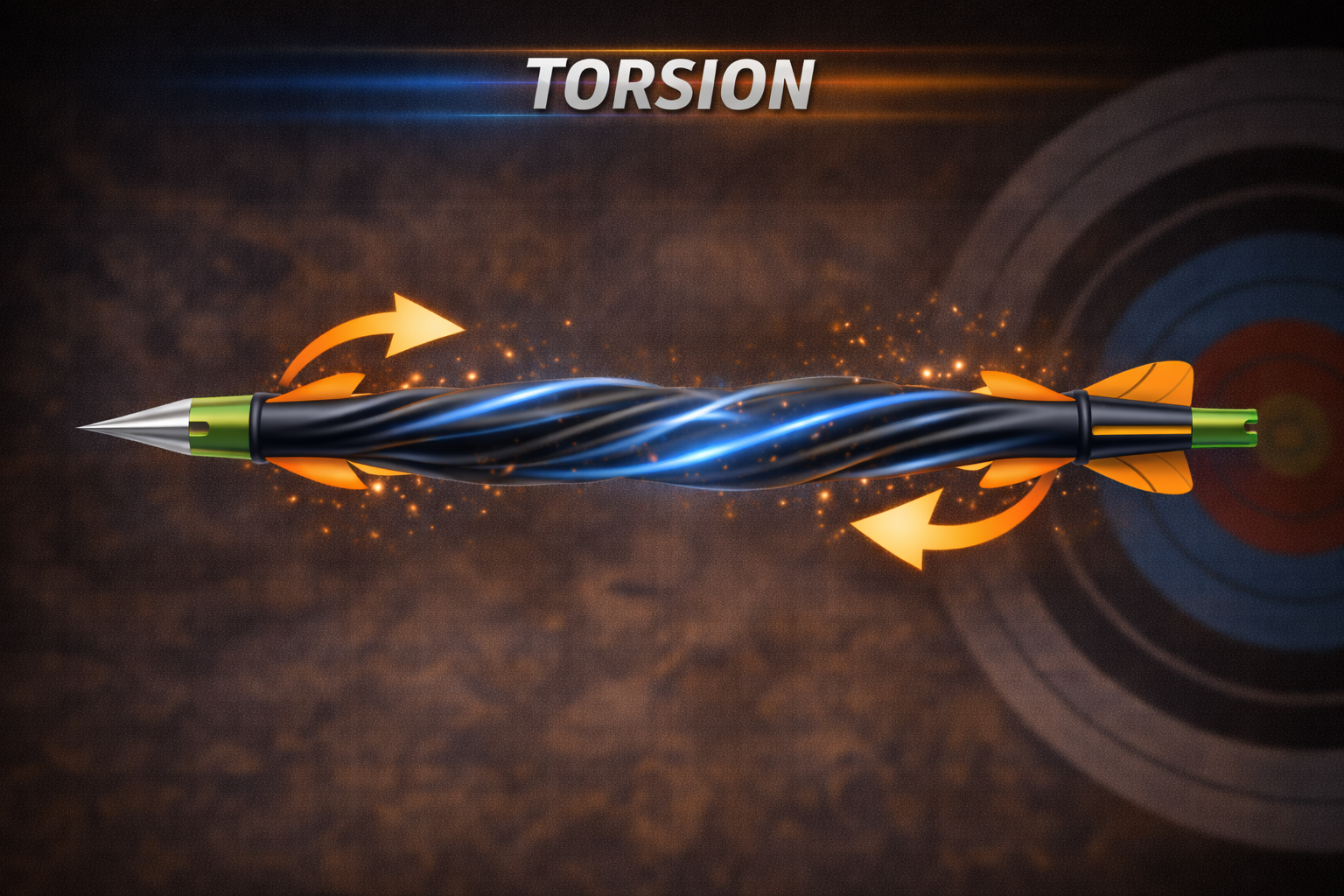

2: Torsion
Torsion is the twisting energy that moves through the arrow shaft during and after release. When the string drives the nock forward, the force does not travel perfectly straight through the arrow. Instead, the shaft reacts dynamically, twisting along its length as it absorbs and transfers energy. A useful way to visualize this is like ringing out a towel: the back of the arrow twists in one direction while the front twists in the opposite direction as energy moves through the shaft.
This twisting is not a single event at launch. The arrow continues to torque back and forth during flight as residual energy, rotation, and air resistance interact with the shaft. If torsion is excessive or poorly controlled, it can waste energy, delay stabilization, and contribute to inconsistent broadhead flight, reduced accuracy, and less efficient energy delivery on impact. Torsion management is influenced not only by the overall arrow system, but also by the shaft construction itself.
The patented AeroWeave shaft-building process incorporates a structural layer specifically dedicated to minimizing torsional movement, helping regulate how twisting energy travels through the arrow. When combined with a structurally optimized AeroConcept (AC) build that improves front-end integrity and overall energy flow, the result is reduced chaotic torque, faster stabilization, and more consistent, repeatable flight downrange.

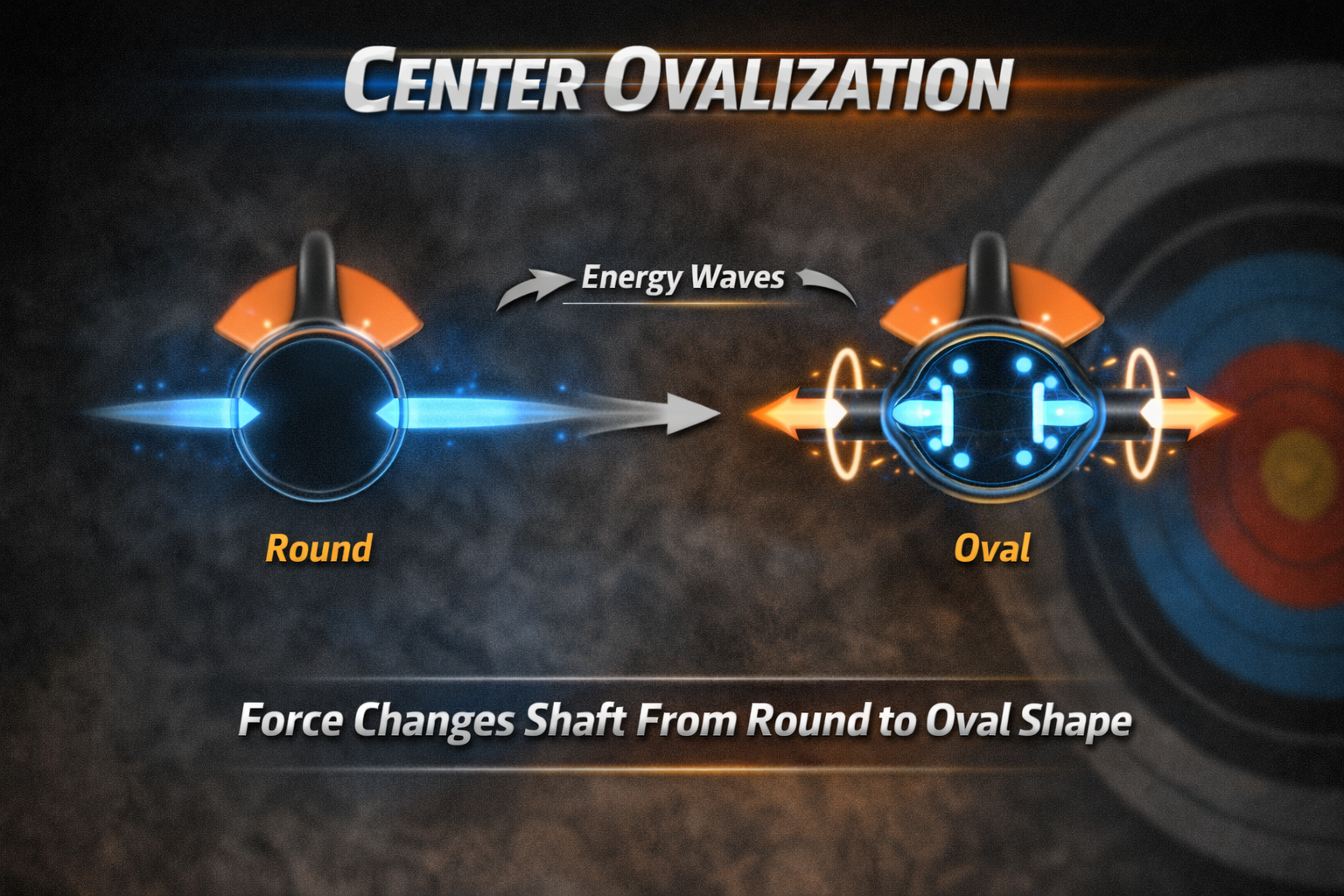

3: Center Ovalization
Center ovalization refers to the slight distortion of the arrow shaft’s shape as energy moves through it during and after release. Instead of remaining perfectly round, the shaft can momentarily compress and expand along different axes as launch energy pulses travel down its length. This deformation is extremely small, but it is constant during the early stages of flight and plays a direct role in how efficiently the arrow stabilizes.
If ovalization is excessive or inconsistent, energy is not transferred evenly through the arrow system. This can lead to wasted energy, delayed stabilization, and less consistent flight downrange. Uneven deformation can also contribute to erratic broadhead flight and reduced penetration efficiency because the arrow is not maintaining optimal structural integrity during flight. Shaft construction plays a major role in managing this behavior.
The patented AeroWeave shaft-building process includes a structural layer specifically designed to manage center ovalization and regulate how energy pulses move through the shaft. This layer works in conjunction with the overall AeroConcept (AC) system to promote more uniform deformation, faster stabilization, and more efficient energy retention, resulting in smoother, more repeatable flight characteristics.

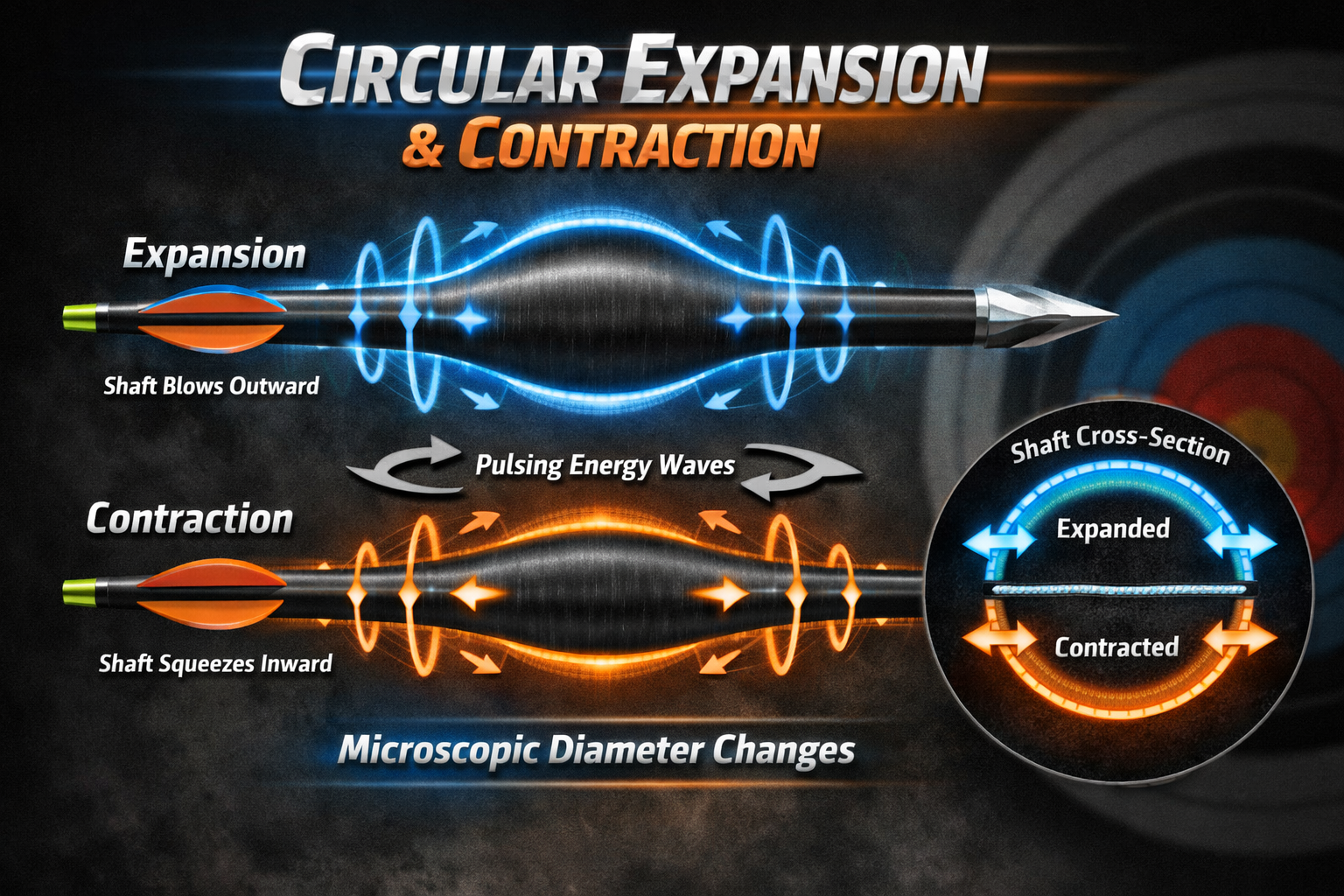

4: Circular Expansion and Contraction
Circular expansion and contraction refers to the microscopic changes in the arrow’s diameter as energy waves travel through the shaft after release. Launch energy does not move as a single smooth push. Instead, it moves in pulses that cause the shaft to slightly expand and contract around its circumference while the arrow is stabilizing in flight. Although these changes are extremely small, they are a constant part of dynamic arrow behavior and directly influence how efficiently the arrow manages energy.
If these expansion and contraction cycles are excessive or poorly controlled, they can create prolonged internal oscillation and instability during flight. This delays stabilization, reduces downrange consistency, and can negatively affect broadhead flight and overall energy efficiency on impact. Shaft construction is a critical factor in managing this motion.
The patented AeroWeave shaft-building process incorporates a dedicated structural layer designed to regulate how these energy pulses move through the shaft, helping to minimize unnecessary circumferential expansion and contraction. When paired with a structurally optimized AroConcept (AC) system that supports balanced energy flow and stronger front-end integrity, the arrow dampens internal oscillation more quickly, resulting in smoother flight, improved repeatability, and more efficient energy delivery downrange.

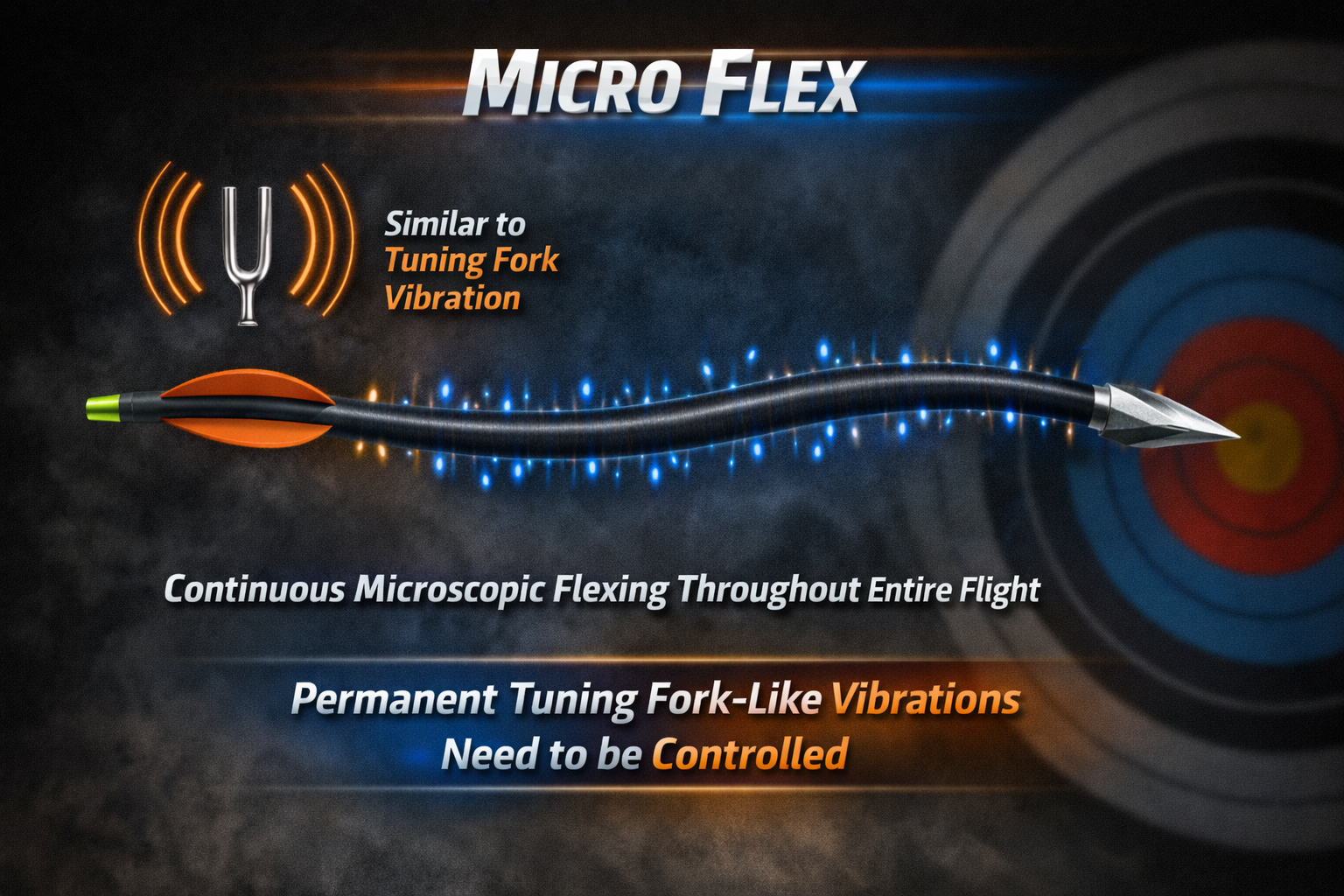

Micro Flex
Micro flex is the continuous, microscopic bending and vibration of the arrow shaft that occurs throughout the entire duration of flight, not just at the moment of release. A helpful way to understand micro flex is to think of a tuning fork. When a tuning fork is struck, it vibrates at a very small scale even after the initial impact. In a similar way, an arrow experiences microscopic vibration and flex along the shaft as it travels, with these tiny movements occurring while the shaft is flexing as a whole through the air.
Micro flex never fully disappears, regardless of arrow build or bow setup. It is a permanent part of dynamic arrow flight and can only be controlled and minimized, not eliminated. If micro flex is excessive or poorly managed, the arrow takes longer to stabilize, may show inconsistent broadhead flight, and can lose energy efficiency before impact because energy is still being absorbed by ongoing vibration and flex. Shaft construction and bow characteristics both play a critical role in regulating this behavior. The higher the letoff, the worse the micro flex due to the way energy is stored and then rapidly transferred at release, which can amplify microscopic vibration within the shaft.
In addition, the patented AeroWeave shaft-building process incorporates a dedicated structural layer designed to manage these microscopic vibrations and flex as energy travels through the shaft. When paired with a structurally optimized AeroConcept (AC) system that supports balanced energy flow and stronger front-end integrity, these micro vibrations are dampened more efficiently, allowing the arrow to stabilize faster, maintain a steadier flight orientation, and deliver more consistent and repeatable performance downrange.
